Novastar MX20 LED Video Processor and Controller/Scaler

Description

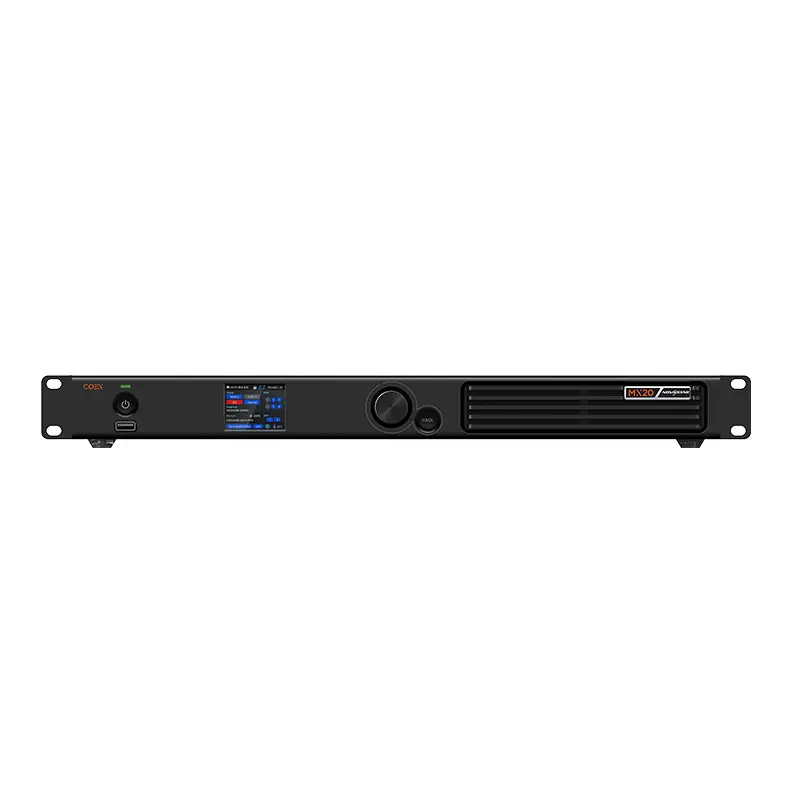

NovaStar MX20 LED Display/Screen Controller

The NovaStar MX20 LED Display/Screen Controller is an all-in-one LED display controller that integrates video processing and LED system control. With multiple inputs and outputs on board, the MX20 offers several setup possibilities. It has two HDMI 1.3 inputs + loop and one 3G-SDI input + loop, while the outputs include six Ethernet ports, two 10G optical ports and an S/PDIF optical output. There are also two network ports, one auxiliary port and a Genlock input and loop on board. A control knob and a back button, together with a 2-inch LCD screen, make it easy to control the device. The MX20 can also be controlled by the comprehensive, user-friendly VMP software, which ensures easy operation and control. Cascading control via Ethernet is also possible and both SNMP and Art-Net protocols are supported. Advanced features include three independent layers, image scaling, 14Ch colour correction, low latency support and display system monitoring. The MX20 can be mounted in a 19-inch rack.
